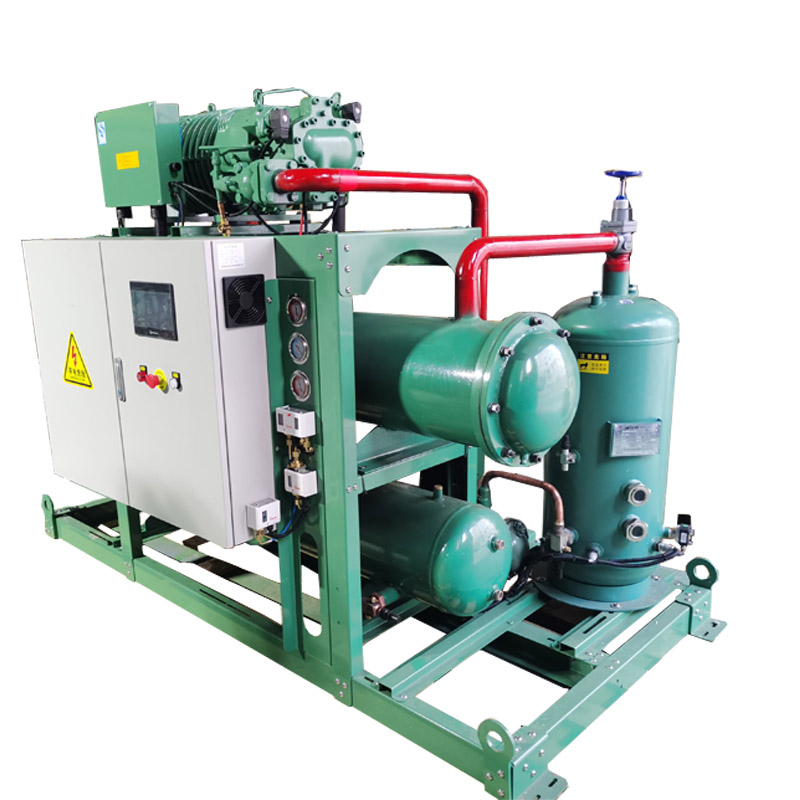

Open-type Single-stage Screw Compressor Unit
Product Description
|
Model |
Power |
Displacement |
Power Supply |
Electrical Pparameter |
Oil Supply Methed |
|||||||
| HP/KW |
2900g/min 50Hz |
3500g/min 60Hz |
Maximum working current |
Start / stall Current |
Weight Including Freezing Oil |
|||||||
| Low temperature model | G LLG- DBL-10 | 10/ 7.5 |
34.78i3/h |
41.9n3/h |
19.9A |
59.0 A D/ 99.0A DD |
Differential pressure oil supply | 116kg | ||||
| GLLG- DBL-15 | 15/ 10.5 |
63.5n3/h |
76.64n3/h |
30.8A |
97.OA D/ 158.0A DD |
126kg | ||||||
| G LLG- DBL-20 |
20/15 |
84m3/h |
101m3/h |
47A |
129.0A D/ 201.0A DD |
174 kg | ||||||
| G LLG-DBL-30 | 30/22.5 |
1 1 8m3/h |
142m3/h |
57A |
153.0A D/ 266.0A DD |
183 kg | ||||||
| GLLG- DBL-40 |
40/30 |
140m3/h |
168m3/h |
64A |
187.0A D/ 313.0A DD |
234kg | ||||||
| GLLG- DBL-50 | 50/37.5 |
165m3/h |
198m3/h |
78A |
206.0A D/ 355.0A DD |
238kg | ||||||
| G LLG-DBL-60 |
60/45 |
192m3/h |
232m3/h |
97A |
267.0A D/ 449.0A DD |
297kg | ||||||
| G LLG-DBL-70 | 70/52.5 |
220m3/h |
266m3/h |
123A |
29CU0A D/ 485.0A DD |
310kg | ||||||
| G LLG- DBl^75 |
75/56 |
250m3/h |
302m3/h |
380..415V D/DD/3/50HZ |
143A |
350.0A D/ 5 85.0A DD |
326kg | |||||
| G LLG- DBL-100 | 1 00/75 |
320m3/h |
384m3/h |
154A |
520.0A DZ 801.OA DD |
425kg | ||||||
| G LLG-TDBL-120 | 120/90 |
410m3/h |
495 m3/h |
215A |
612.OA D/ 943.OA DD |
428kg | ||||||
| GLLG- DBL-140 | 140/105 |
470 m3/h |
567 m3/h |
259A |
729.OA D/ 1114.0 A |
432kg | ||||||
| Medium temperature model | GLLG-ZBL-15 | 15/10.5
|
345" |
41.92m3/h |
25A |
59.0AD/ 99.0ADD |
120kg | |||||
| G LLG-ZBL-20 |
20/15 |
63.5m3/h |
76.6m3/h |
38A |
81.0 A D/ 132.0A DD |
130kg | ||||||
| G L LG-ZBL-30 | 30/22.5 |
84m3/h |
10lm3/h |
51A |
126.OA D/ 218.OA DD |
17»g | ||||||
| GLLG-ZBL-40 |
40/30 |
1 18m3/h |
142m3/h |
65A |
182.OA D/ 31 1.0A DD |
183kg | ||||||
| GL LG-ZBL-50 | 50/37.5 |
140m3/h |
168m3/h |
78A |
206.OA D/ 355.OA DD |
240kg | ||||||
| G L LG-ZBL-60 | 60/45 |
1 65m3/h |
198m3/h |
97A |
267.OA D/ 449.OA DD |
246kg | ||||||
| G L LG-ZBL-70 | 70/52.5 |
1 92m3/h |
232m3/h |
123A |
290.OA D/ 485.OA DD |
305kg | ||||||
| G LLG-ZBL-80 |
80/60 |
220m3/h |
266 m3/h |
143A |
350.0 A D/ 585.0 A DD |
314kg | ||||||
| GLLG-ZBL-90 | 90/67.5 |
250m3/h |
302m3/h |
180A |
423.OA D/ 686.OA DD |
336kg | ||||||
| G LLG- ZBL -120 | 120/90 |
320m3/h |
384m3/h |
202A |
603.0 A D/ 923.OA DD |
425kg | ||||||
| G LLG-ZBL -140 | 140/105 |
410m3/h |
495 m3/h |
246A |
665.0A D/ 1023.0 A DD |
43Kg | ||||||
| G LLG- ZBL -160 | 160/120 | 470m3/h |
567 m3/h |
259A |
729.0 A D/ 1114.0 A |
480kg | ||||||
Advantage
Stable&Reliable; High efficiency&energy saving; Compact&nimble; Easy operation&convenizence
● High- efficiency screw compressor: higher COPthan the same type of compressor units.
● Open asynchronous motor with high efficiency and lownoise; the permanent magnet synchronous variablefrequency motor is also available for selection.
● Differential- pressure oil supply system with a small oilpump as pre- lubrication: energy- saving and reliable.
● Economizer installed: make the high pressure liquidfrom the condenser subcooled, thus improve COP ofthe system.
● Fully automatic one- key start- up; real- time analysisand monitoring of the operation status; saving andkeeping of the historical data, remotely control.
● Automatic capacity control make the unit run with highefficiency under various working conditions.
● The preventive safety and protection system:unmanned but safe and reliable.
●All the components are from well-know nmanufacturers: high reliability and guaranteed quality.
● Each unit is tested and checked for its fullperformance to ensure the quality.
